Technical Parameters and Price
|
Model |
OSC-M |
|
Power |
7.5kw with adjustable speed |
|
Voltage |
380V |
|
R.P.M |
1500-6000r/min |
|
Blade size |
350mm |
|
Grooving tool size |
350mm |
|
Grinding wheel size |
150mm |
|
Maixmum processing length |
3200mm |
|
Maximum processing thickness |
30mm |
|
Processing speed |
1000mm/min |
|
Overall size |
5550*1700*1350mm |
|
Weight |
2300mm |
|
20’container load |
1 |
Note:
1. The above price includes 1 set of tool (1pc blade, 1pc slotted blade, 1pc grinding wheel),
and exclude the air pump, which needs to be used with an air pump with a power of more than 1650W.
2. Delivery time: 20 days after receipt of 30% deposit
3. Warranty: 1 year(excluding easily damaged parts)
4. Voltage: According to clients requirements.
5. Trade terms: EXW, FOB, CFR, CIF, DDU, FCA
6. Payment terms: T/T (30% as deposit, 70% balance paid before leaving our factory)

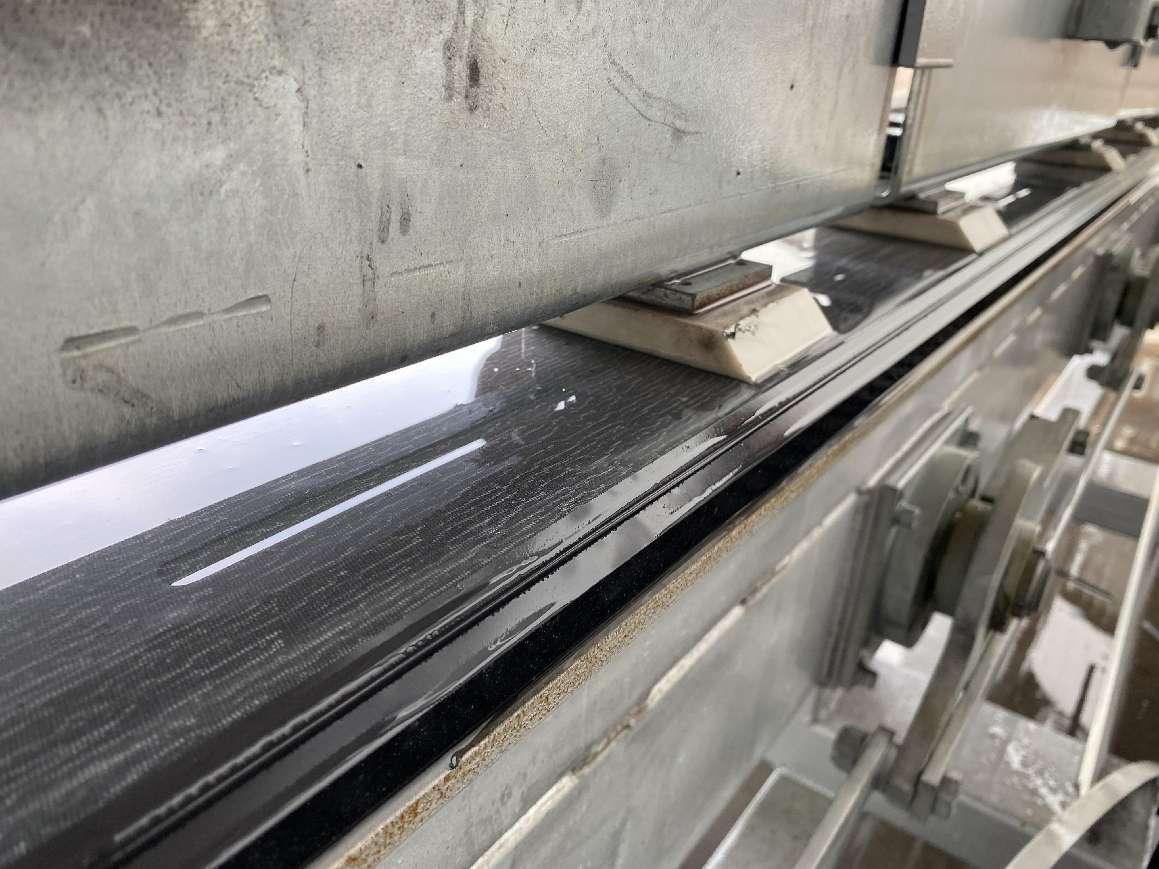

Machine Details & Configurations

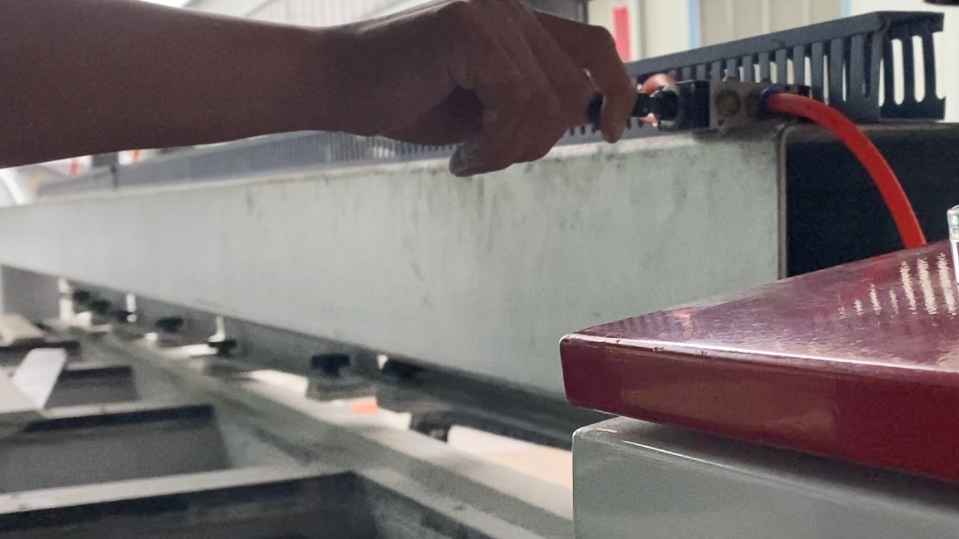

Large touch screen Pneumatic pressing clamp
(Simpler and more convenient operation) (Adjustable processing length)
Lengthen and widen the backer High rotating speed The blade can be processed independently
(More efficient processing) or in combined segmented processing
Adopting the structure design of Rigid positioning
"plate fixing, machine head walking" the slab will not form big and small heads
(Higher stability)
Processing Effect Display

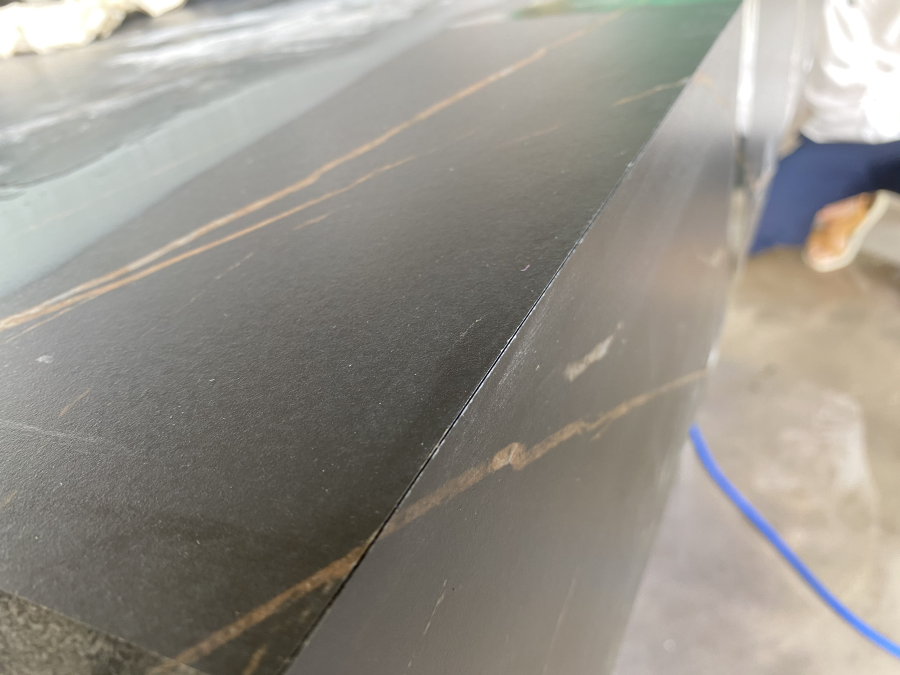

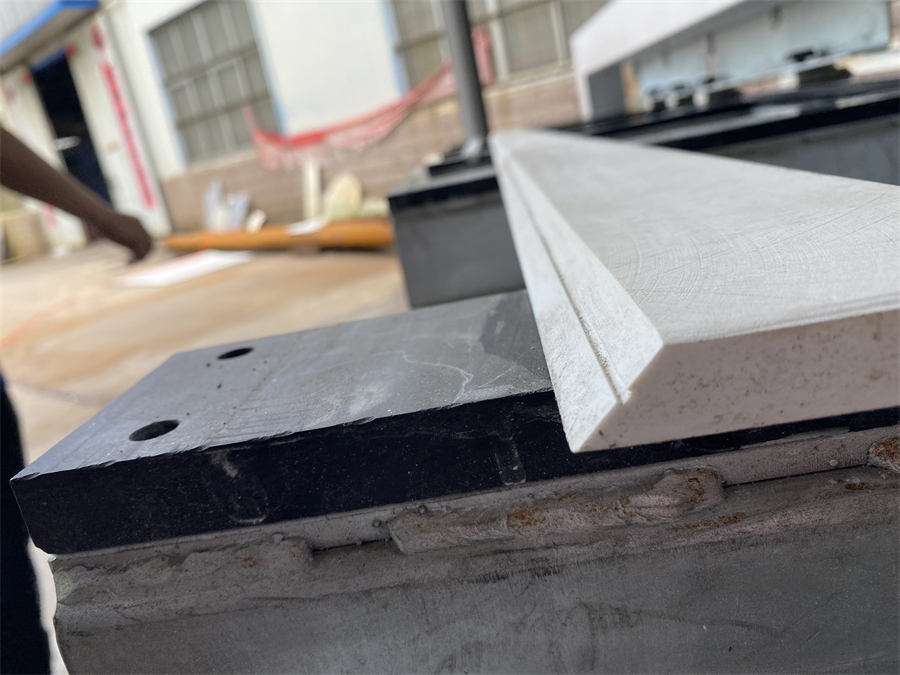

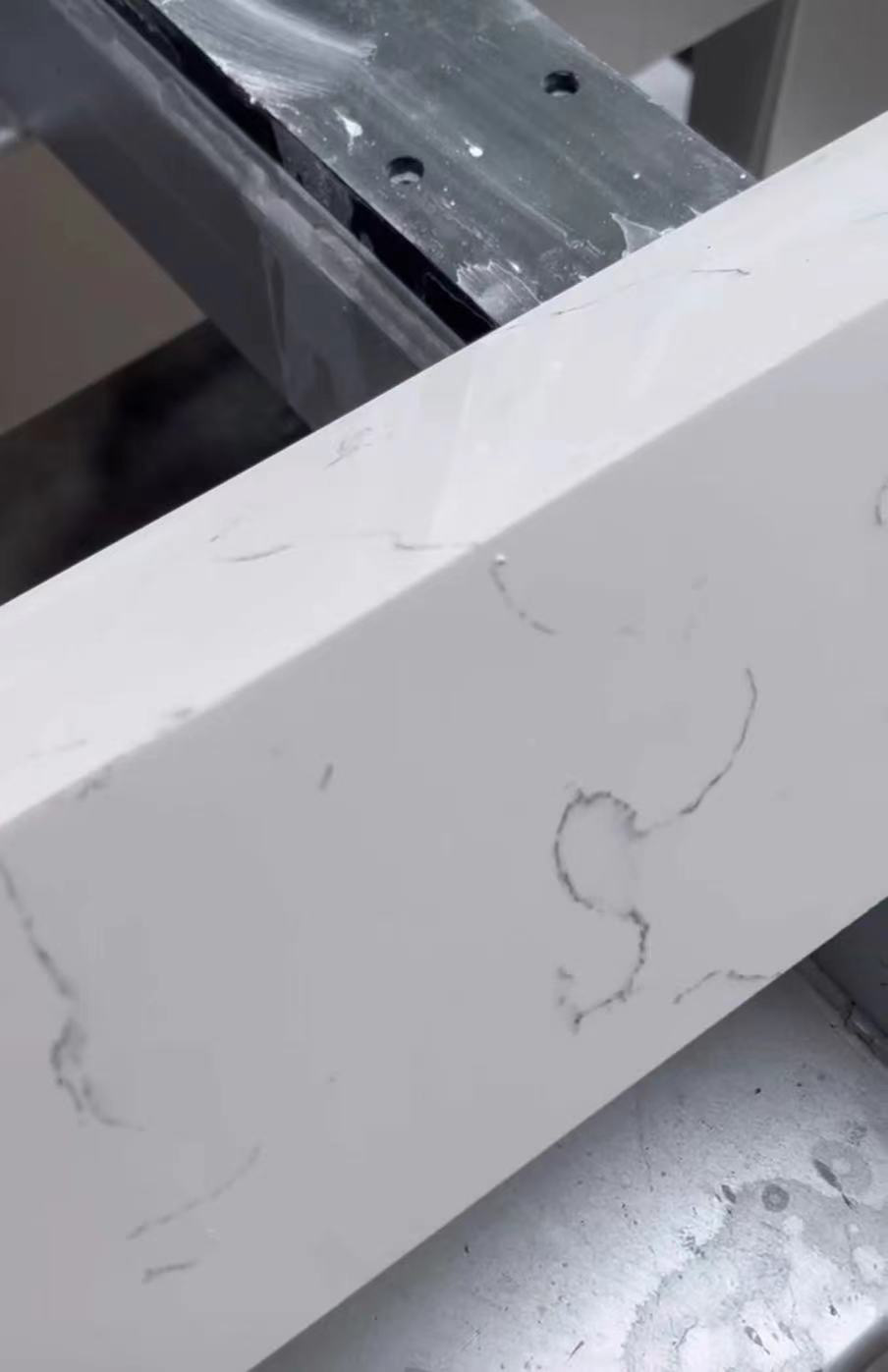

45 Degree Chamfer

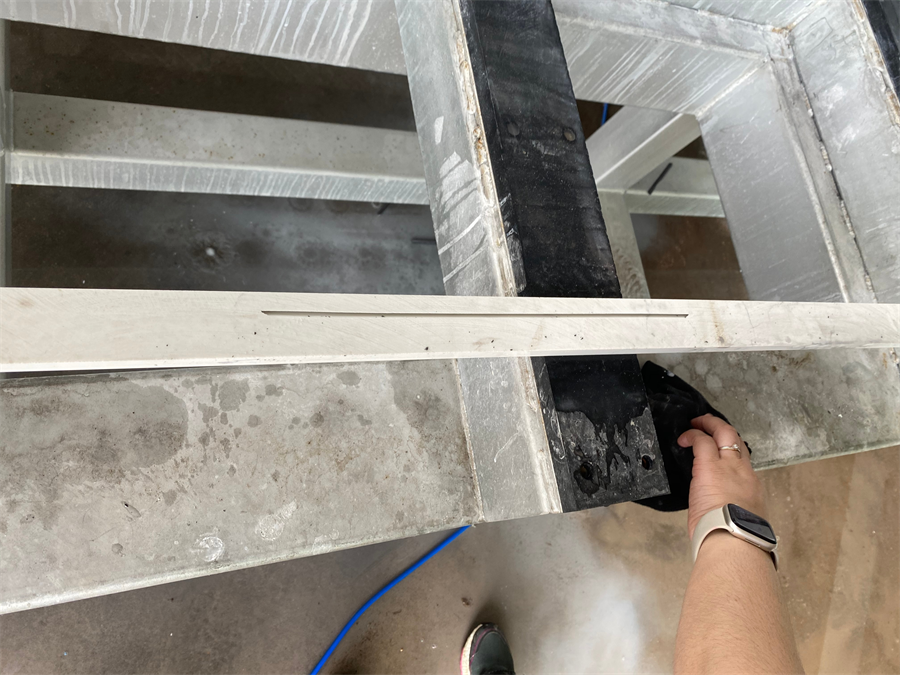

Side Slotting

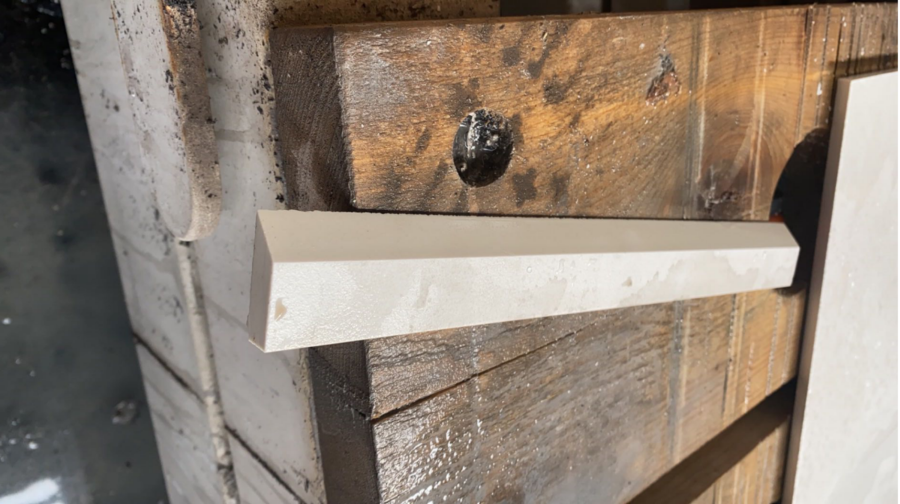

Segmented Processing

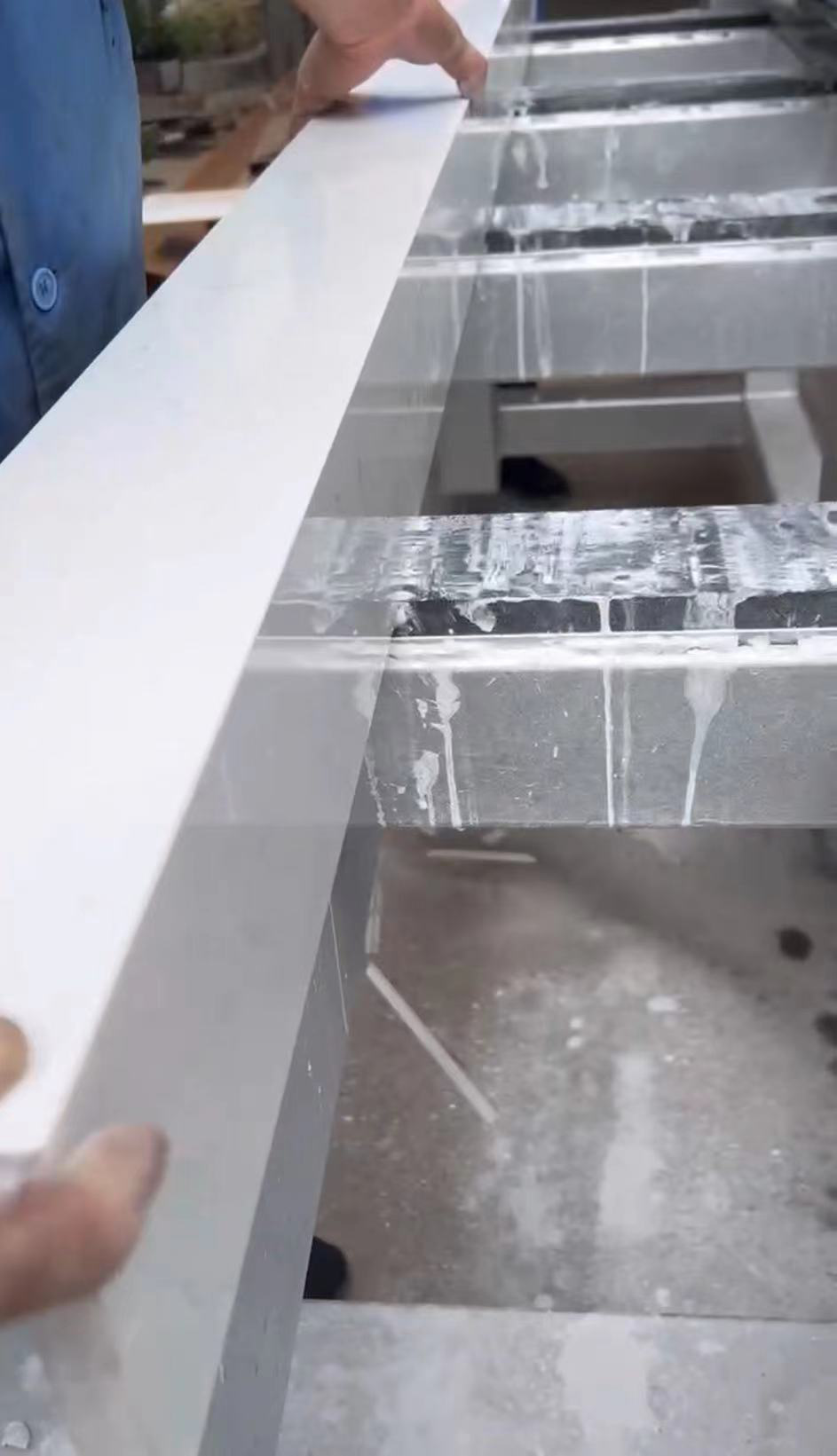

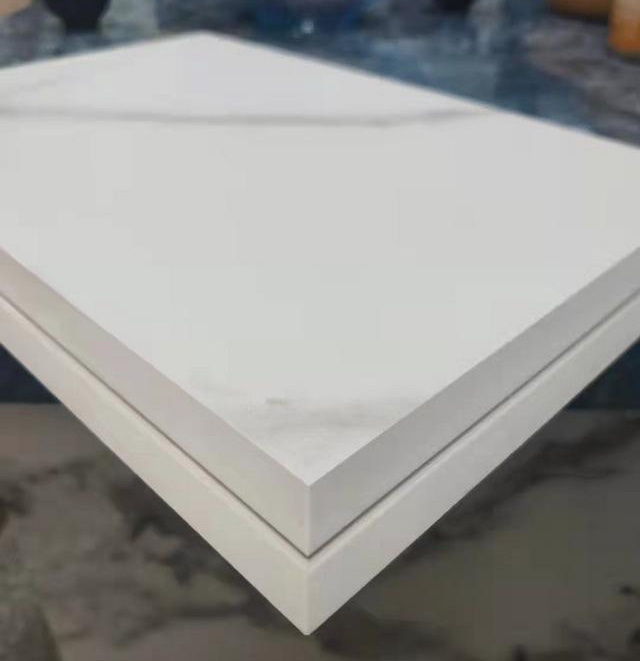

Splicing Effect

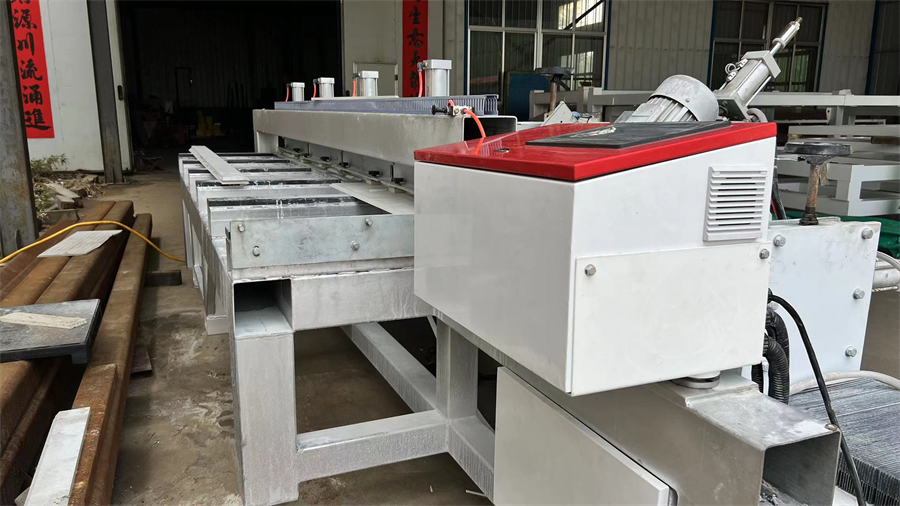

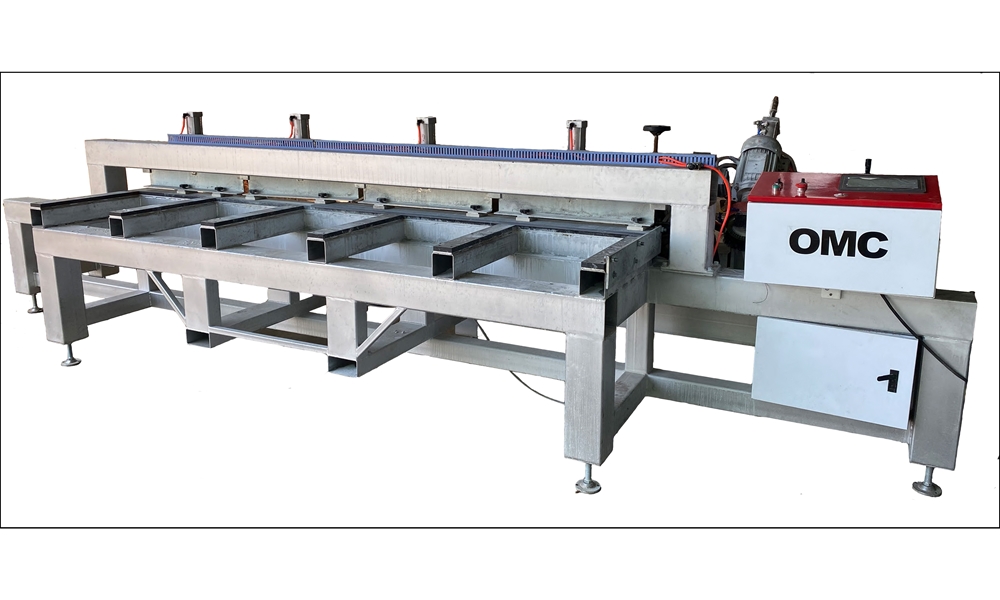

Machine Display

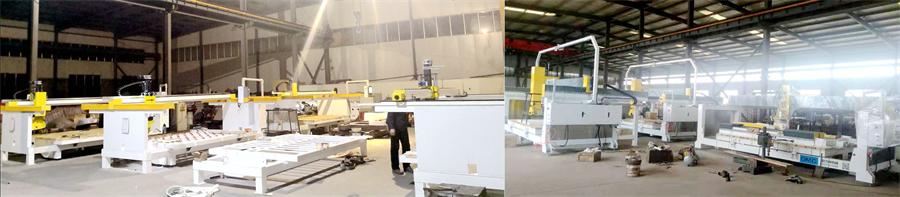

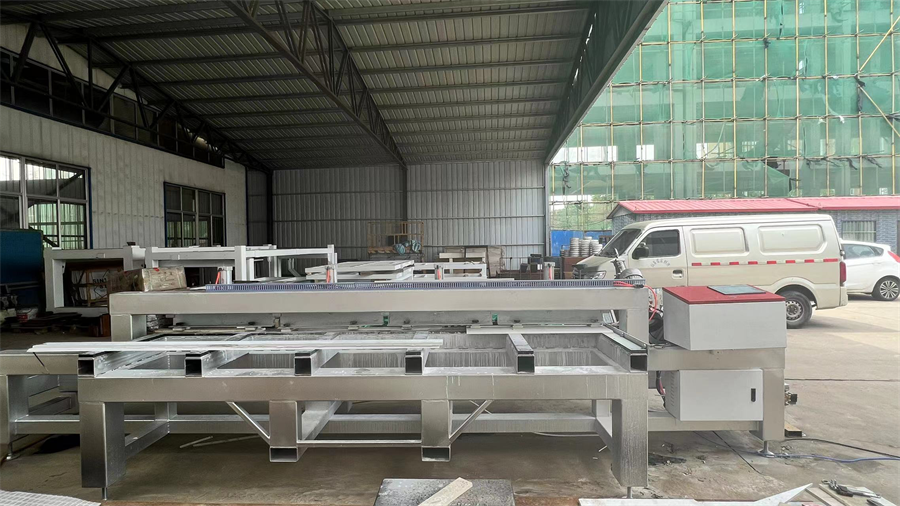

Workshop Photo
Factory & Team & Customers
Recommended Machine (CNC 5 Axis Bridge Saw Machine---For kitchen Coutertop Processing)
